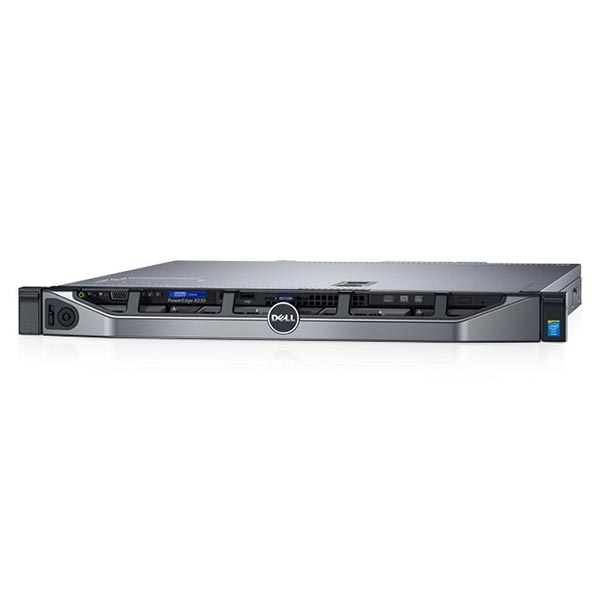

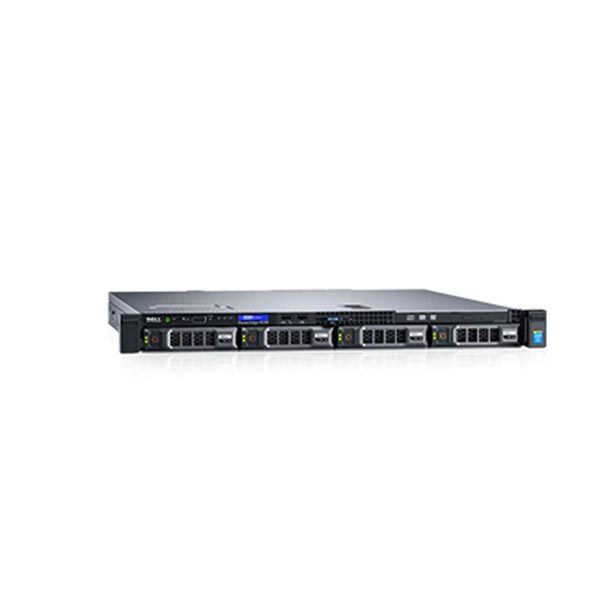

PowerEdge R230 Rack Server

Consolidate data and drive applications faster with the powerful, efficient and versatile PowerEdge R230 1-socket, 1U entry rack server.

Operating System Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 R2, x64
Microsoft® Windows Server® 2016
Red Hat® Enterprise Linux®
VMware Vsphere® ESXi®
SUSE® Linux Enterprise Server®
Processor 1 processor from the following product families:
Intel® Xeon® processor E3-1200 v6 product family
Intel Pentium®
Intel Core i3®
Intel Celeron®
Memory4 Architecture: Up to 2400MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Sockets: 4
Maximum RAM: Up to 64GB
Power 250W cabled PSU

Description

Consolidate data and drive applications faster with the powerful, efficient and versatile PowerEdge R230 1-socket, 1U entry rack server.

Drive Bays
2 x 3.5″ cabled HDD
4 x 3.5″ cabled HDD
4 x 3.5″ hot swap or 2.5″ hot swap in hybrid drive carrier

Dimensions & Weight
Depth without bezel: 495.0 mm (19.5 in)
Depth with bezel: 551.3 mm (21.7 in)
Height: 42.8 mm (1.68 in)

Width without rack latches: 434.0 mm (17.08 in)
Width with rack latches: 482.4 mm (18.99 in

Chassis
2 x 3.5″ cabled HDD 19.5″ 1U chassis
4 x 3.5″ cabled HDD 19.5″ 1U chassis
4 x 3.5″ Hot-Plug HDD 19.5″ 1U chassis

RAID Controllers
S130, H330, H730, H830

Chipset
Intel C236

Storage
2.5” SATA 7.2K
2.5” nearline SAS 7.2K
2.5” 10K SAS HDDs
2.5” 15K SAS HDDs
2.5” SATA HDDs
3.5” Enterprise SATA 7.2K HDDs
3.5” nearline SAS 7.2K HDDs
3.5” 7.2K SATA entry drives

Slots
2 x PCIe 3.0 slots: x16 slot, full height (1×8 PCIe 3.0)+ x8 slot, low profile (1×4 PCIe 3.0)

Network Controller
Broadcom® BCM5720

Management
Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center

Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware vCenter™

Dell OpenManage Connections:
HP Operations Manager, IBM Tivoli® Netcool® and CA
Network and Systems Management
Dell OpenManage Plug-in for Oracle® Database Manager

Remote management:
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default),
iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade),16GB vFlash media (upgrade)

Embedded Hypervisor (Optional)
Hypervisor Support

Microsoft Windows Server with Hyper-V®
VMware® vSphere® ESXi®

Communications
2 x 1GbE LOM

Device Access
5 Total USB:
Rear: 2 x USB 3.0 ports
Front: 2 x USB 2.0 ports
Internal: 1 x USB 3.0 port

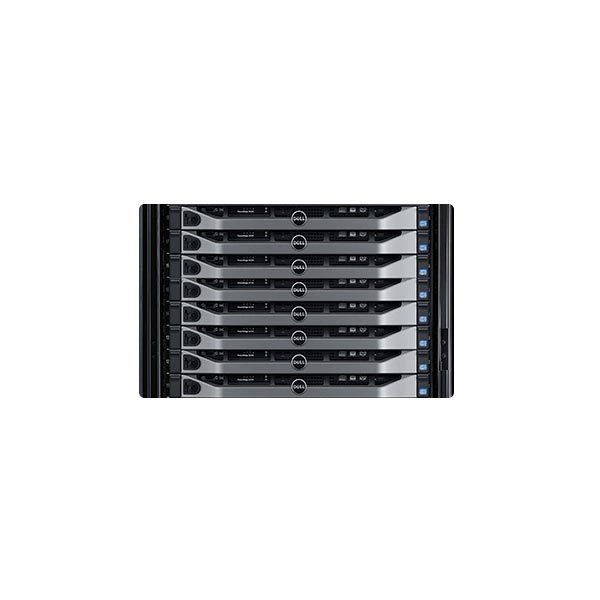

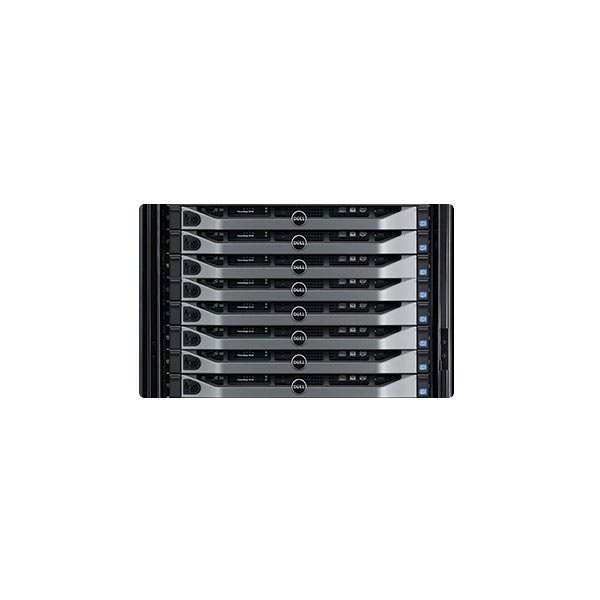

Rack Support
ReadyRails™ static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post racks.

Regulatory
