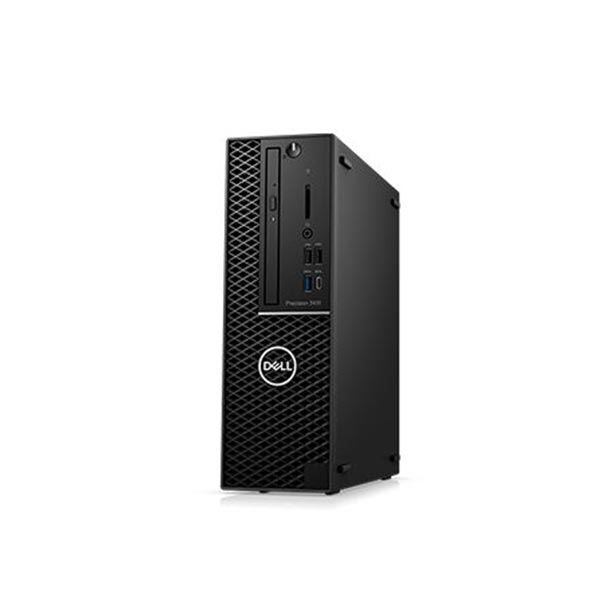

Precision 3431 Desktop Workstation

Extreme performance is more accessible than ever with this tower workstation featuring increased reliability and enhanced memory.

Operating System Windows 10 Pro (64 bit)
Windows 10 Pro for Workstations (64 bit) w/ Intel® Xeon® processors
Windows 10 Home (64 bit)
Red Hat® Enterprise Linux® 7.5 (coming soon)
Red Hat 8.0 (coming soon)
Ubuntu Linux 16.04
Ubuntu Linux 18.04
Video Card Intel® UHD Graphics 630
AMD Radeon™ Pro WX4100
AMD Radeon™ Pro WX3100
AMD Radeon™ Pro WX2100
NVIDIA® Quadro® P1000
NVIDIA® Quadro® P620
NVIDIA® Quadro® P400
Memory8 4 GB, 1X4 GB, DDR4, 2666 MHz, Non-ECC SDRAM
8 GB, 2×4 GB, DDR4, 2666 MHz, Non-ECCSDRAM
8 GB, 1×8 GB, DDR4, 2666 MHz, ECC/Non-ECCSDRAM
16 GB, 4×4 GB, DDR4, 2666 MHz, Non-ECCSDRAM
16 GB, 2×8 GB, DDR4, 2666 MHz, ECC/Non-ECCSDRAM
32 GB, 4×8 GB, DDR4, 2666 MHz, ECC/Non-ECCSDRAM
32 GB, 2×16 GB, DDR4, 2666 MHz, ECC/Non-ECCSDRAM
64 GB, 4×16 GB, DDR4, 2666 MHz, ECC/Non-ECCSDRAM

Description

Extreme performance is more accessible than ever with this tower workstation featuring increased reliability and enhanced memory.

Processor
Intel® Pentium® Gold G5420, 2 Core, 4MB Cache, 3.8 Ghz w/UHD Graphics 630
Intel® Core™ i3-9100, 4 Core, 6MB Cache, 3.6Ghz, 4.2 Ghz Turbo w/UHD Graphics 630
Intel® Core™ i5-9500, 6 Core, 9MB Cache, 3.0Ghz, 4.4 Ghz Turbo w/UHD Graphics 630
Intel® Core™i5-9600, 6 Core, 9MB Cache, 3.1Ghz, 4.6 Ghz Turbo w/UHD Graphics 630
Intel® Core™ i7-8700 (6 Core, 12MB Cache, 3.20GHz, 4.6Ghz Turbo w/ HD Graphics 630)
Intel® Core™ i7-9700, 8 Core, 12MB Cache, 3.0Ghz, 4.8 Ghz Turbo w/UHD Graphics 630
Intel® Core™ i9-9900, 8 Core, 16MB Cache, 3.1Ghz, 4.9 Ghz Turbo w/UHD Graphics 630
Intel® Xeon® E-2224, 4 Core, 8MB Cache, 3.4Ghz, 4.6Ghz Turbo
Intel® Xeon® E Processor E-2174G (4 Core HT, 8MB Cache, 3.8Ghz, 4.7GHz Turbo)
Intel® Xeon® E-2236, 6 Core, 8MB Cache, 3.4Ghz, 4.8Ghz Turbo
Intel® Xeon® E-2246G, 6 Core, 8MB Cache, 3.6Ghz, 4.8Ghz Turbo w/UHD Graphics 630
Intel® Xeon® E-2224G, 4 Core, 8MB Cache, 3.5Ghz, 4.7Ghz Turbo w/UHD Graphics 630

Hard Drive
2.5″, 500 GB/1 TB, 7200, SATA, HDD
2.5″, 500 GB, 7200, SATA, HDD, FIPS Self Encrypting Opal 2.0
2.5″, 2 TB, 5400, SATA, HDD
2.5″, 256 GB/512 GB/1 TB, SATA20, SSD, SED
2.5″, 512 GB/1 TB, SATA, SSD, SED
3.5″, 500 GB/1 TB/2 TB/4 TB/8TB, 7200, SATA, HDD
3.5″, 4 TB, 5400, SATA, HDD
M.2 2280, 256 GB/512 GB/1 TB/2 TB, PCIe, 40, SSD
M.2 2280, 512 GB/1 TB, PCIe, 50, SSD
M.2 2280, 512 GB, PCIe, 40, SSD, SED (Opal 2.0)
M.2 2230, 32 GB, PCIe, SSD, Optane

Security Software
Security Options

Trusted Platform Module TPM 2.0,
Dell Data Guardian,
Dell Endpoint Security Suite Enterprise,
Dell HW Crypto Accelerator,
Microsoft® Windows Bitlocker,
Local HDD data wipe via BIOS (“Secure Erase”),
Encryption – SED HDD (Opal FIPS),
Chassis lock slot support,
Chassis Intrusion Switch,
D-Pedigree (Secure Supply Chain Functionality),
Setup/BIOS Password,
Optional Smart Card keyboards,
Optional Smart Card Reader,
Intel® Trusted Execution Technology,
Intel® Identity Protection Technology,
Dell Secure Works,
BIOS support optional Computrace,
Intel® Software Guard extensions

Warranty
3 Years Hardware Service with Onsite/In-Home Service After Remote Diagnosis (Basic) up to 5 Year ProSupport Plus with 4-Hour 7X24 Onsite Service After Remote Diagnosis

Accidental Damage Protection
Up to 5 Years Accidental Damage Service

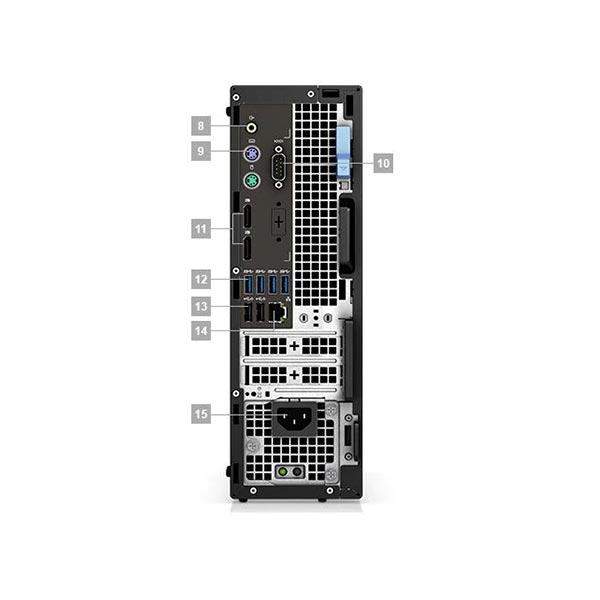

Ports
4 USB 2.0 Type A (2 Front / 2 Rear)
5 USB 3.1 Type A (5Gb) (1 Front / 4 Rear)
1 Front USB 3.1 Type C™ (10Gb), data only
1 Front Universal Audio Jack
1 Front Internal SD Card reader (Optional)
2 Rear PS2
2 Rear Display Port
1 Rear Optional Port (VGA, HMDI 2.0, DP++ 1.2, Type C™ w/DP-Alt mode)
1 Rear RJ45 Network Connector
1 Rear Serial
1 Rear Audio Line out

Optical Drive
No Optical Drive
8x DVD-ROM 9.5mm Optical Disk Drive
8x DVD+/-RW 9.5mm Optical Disk Drive
Integrated Smart Card Reader with Contact and Contactless Support (CAC/PIV)
6x Slimline Blu-Ray Writer

Slots
1 Noble Wedge Lock slot
1 Internal SD Card reader (Optional)

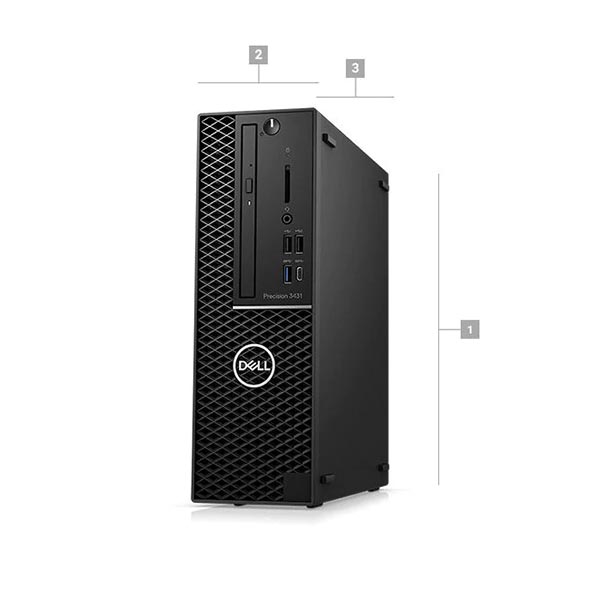

Dimensions & Weight
Height: 290 mm (11.42″) x Width: 92.6 mm (3.65″) x Depth: 292 mm (11.49″) x Weight: 5.117 kg (11.28 lb)3

Wireless
Integrated: Intel Ethernet Connection I219-LM 10/100/1000
Optional: Intel® 10/100/1000 PCIe Gigabit Networking card
Aquantia® AQtion™ AQN-108 5/2.5 GbE NIC Adapter
Optional: Wireless / Bluetooth w / vPro™ support

Power
260W 92% efficient PSU (80PLUS Platinum Certified) Energy Star Compliant
200W 85% efficient PSU (80PLUS Gold Certified) Energy Star Compliant
200W 85% efficient PSU (80PLUS Bronze Certified) Energy Star Compliant

Regulatory
ENERGY STAR® configurations available including 80 PLUS® Bronze & Platinum power supplies
EPEAT®
China CECP
GS Mark
