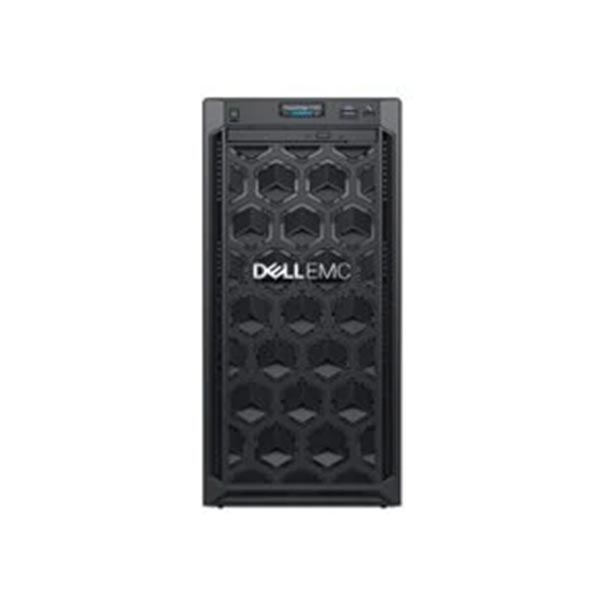

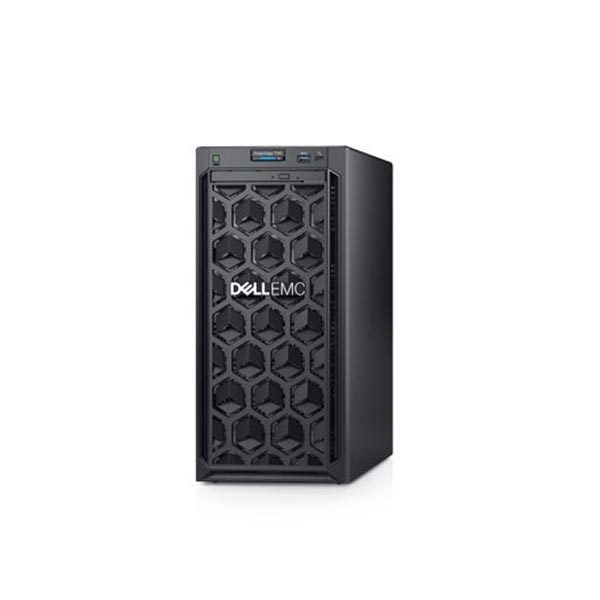

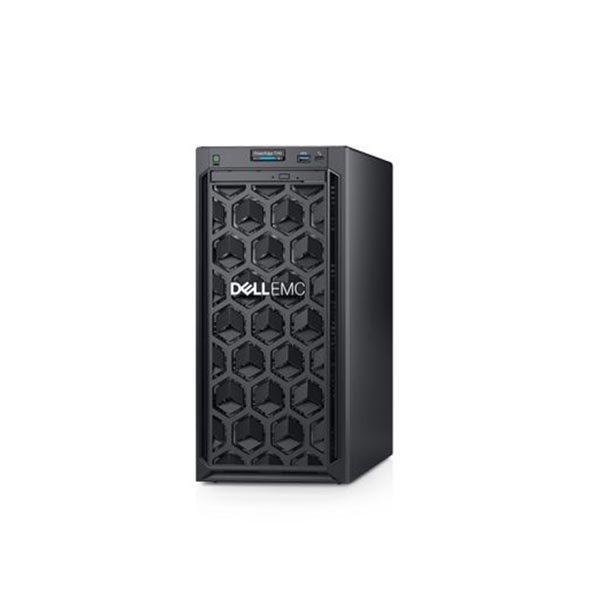

PowerEdge T140 Tower Server

Easy to use, safe, and practical entry-level server for growing businesses. Ideal for file and print, and point of sale applications.

Processor Up to one Intel® Xeon® E-2100 product family processor with up to 6 cores per processor
Up to one Intel® Pentium® G5500 processor up to 2 cores per processor
Up to one Intel® Core i3® 8100 processor up to 4 cores per processor
Up to one Intel® Celeron® G4900 processor up to 2 cores per processor
Memory6 DIMM Speed
up to 2666MT/s
Drive Bays Up to 4 x 3.5” cabled bays
Power Supplies 365W Gold
Security Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
Secure Erase
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional

Description

Easy to use, safe, and practical entry-level server for growing businesses. Ideal for file and print, and point of sale applications.

Storage Controllers
Storage Controllers
Internal Controllers
PERC H330, H730p, HBA330

Software RAID S140

External HBAs (non-RAID)
12 Gbps SAS HBA

Boot Optimized Storage Subsystem
2 x M.2 240GB (RAID 1 or No RAID)
1 x M.2 240GB (No RAID only)

Dimensions & Weight
Height
360.0mm (14.2″)

Width
175.0mm (6.9″)

Depth
454.0mm (17.9″)

Weight
11.8kg (26.1lbs.)

I/O and Ports
Network Options
2 X 1GbE

Front Ports
1 x Dedicated iDRAC micro-USB
1 x USB 3.0

Rear Ports
1 x Serial
2 x USB 3.0
4 x USB 2.0
1 x VGA

Internal Ports
1 x USB 3.0

Supported Operating Systems
Canonical® Ubuntu® LTS
Citrix® Hypervisor®
Microsoft® Windows Server® LTSC with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.

Ports
Front panel: 1x USB 3.0, 1x iDRAC micro USB 2.0 management port
Back panel: 2x USB 3.0, 4x USB 2.0, VGA, serial connector
Internal USB: 1x internal USB 3.0

Chassis
Tower server

Chipset
Intel C246

Storage
Front Bays
Up to 4 x 3.5″ SAS/SATA (HDD), max 16TB

Slots
PCie
1 x Gen3 slot (x16)
2 x Gen3 slots (x8)
1 x Gen3 slot (x1)

Video Card
1 x VGA

Network Controller
2 X 1GbE LOM

Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish

Consoles
OpenManage Enterprise
OpenManage Power Center

Mobility
OpenManage Mobile

Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services

OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter

OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI

Regulatory
