Description

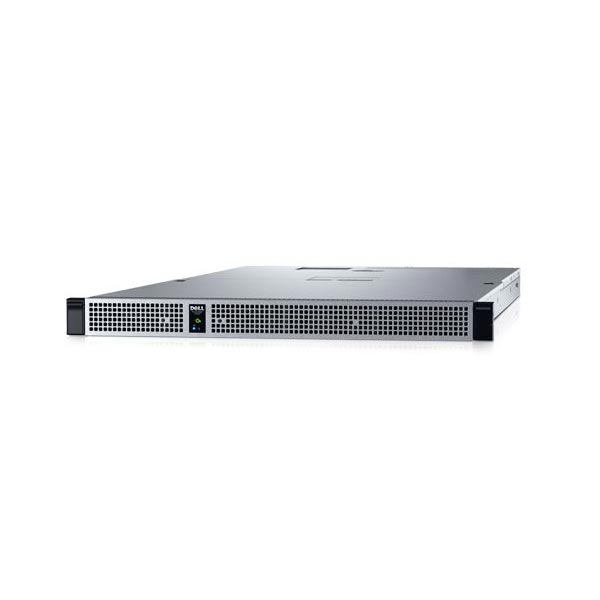

Drive the most demanding HPC, data visualization and rendering workloads with a flexible, dense 1U rack server optimized for GPUs and co-processors.

Dimensions & Weight
H: 4.31 cm (1.69 in)
W: 43.93 cm (17.29 in) without rack latches
D: 88.58 cm (34.87 in) back of rack latch to rear wall

Availability

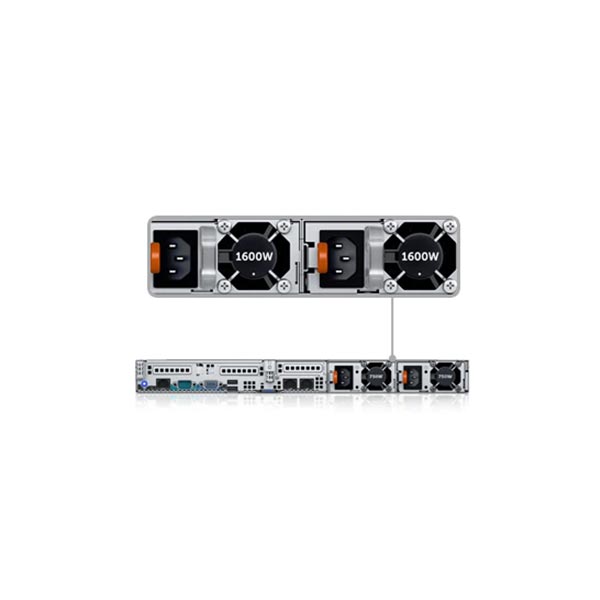

Redundant power supply units (PSUs)
Fault-tolerant cooling
Hot-plug boot drives
iDRAC8 with Lifecycle Controller

RAID Controllers
Optional internal controller: PERC H330, H730, H730P and H810

Chipset
Intel® C612 Series Chipset

Storage
Up to 2 x 1.8” SATA SSD boot drives
Optional data drive tray supports up to 4 x 2.5” SAS/SATA drives
Optional 12Gb/s SAS and 6Gb/s SATA (with PERC9 card)

Slots
Up to 2x PCIe 3.0 low-profile adapters (back)
Support for InfiniBand® EDR, FDR and NVIDIA® GPUDIRECT
Optional 96-lane PCIe 3.0 switch for certain accelerator configurations
4 x16 PCIe slots (front) for the GPU

Network Controller
2x 1GbE

Management
Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center

Remote management:
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade)
16GB vFlash media (upgrade)

Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft® System Center

Dell OpenManage Connections:
HP Operations Manager
IBM Tivoli® Netcool® and CA Network and Systems Management
Dell OpenManage Plug-in for Oracle® Database Manager

Environmental Operating Conditions
Certain configurations may require inlet air temperatures below 25°C

Regulatory
