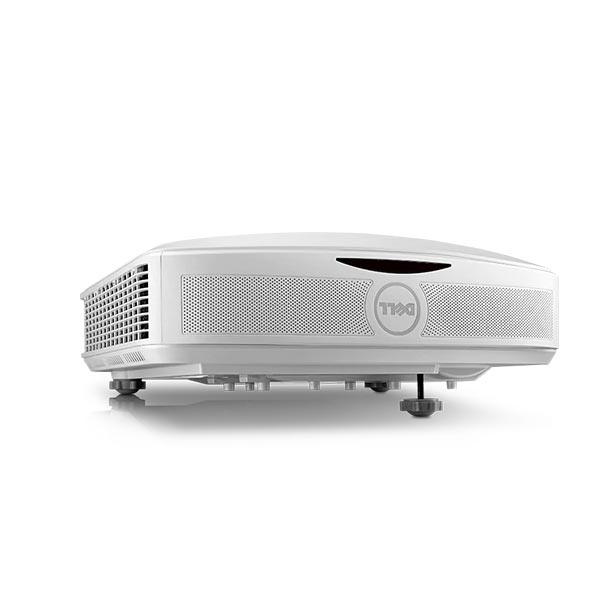

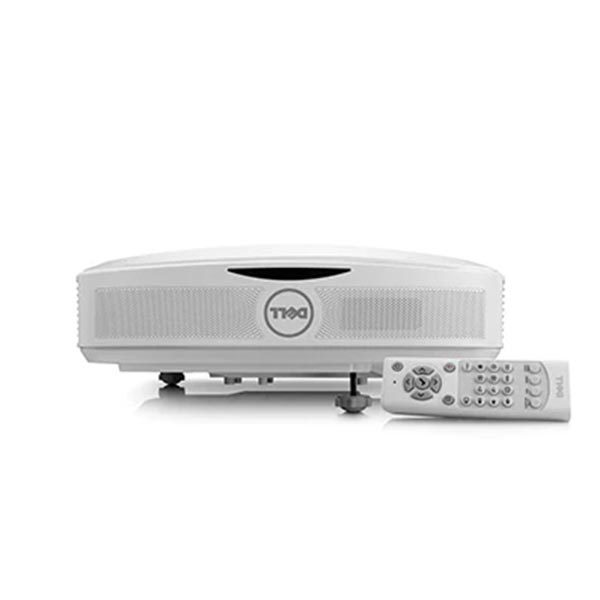

Dell Projector: S560

Invite group collaboration with engaging ultra-short throw projections featuring Full HD, easy set-up and compatibility across multiple devices.

Displayable Colors: 1.07 billion
ANSI Lumens (Max.): 3,400
Contrast Ratio: Max: 10,000:1 High Contrast Mode
Native: 1,800:1 (Full On/Full Off)
Aspect Ratio: 16:9
Native Resolution: Full 1080p HD (1920 x 1080)
Keystone Adjustment: Manual Vertical (± 5˚)
Audio (Built-in Multimedia Speaker): 2x 10W
Lamp Type / Light Source: Philips 260W user-replaceable
Throw Ratio: UST TR0.25
Screen Size – Diagonal: 81″ ~ 100″
Projection Distance: 1.46 ft ~ 1.83 ft
(44.6~55.8cm)
LensF-Stop F/2.4
Focal Length: 497mm ± 25mm @ 89.1
Lens Offset: 118.5 ± 5%
3D-Capable: Yes
Lamp Type / Light Source: Up to 3K (Nor)
Up to 5K (Eco)
Wireless functionality + Advanced features: Optional (HDMI interface WIFI dongle)
Hsync Frequency: 15K-100KHz
Vsync Frequency: 24-120Hz
Category:

Description

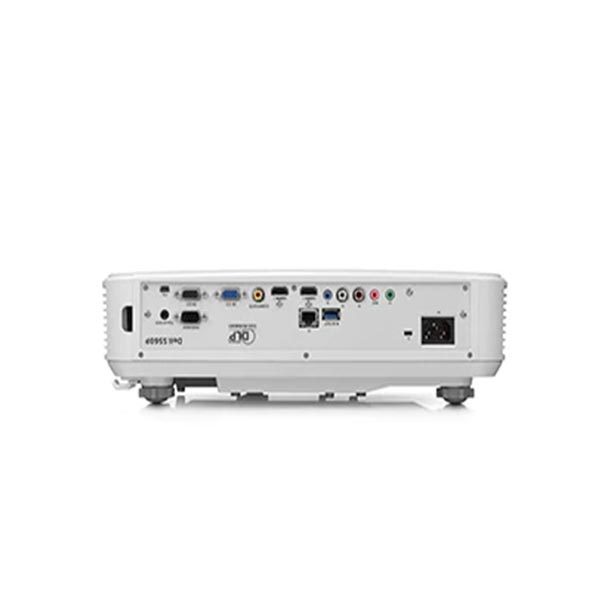

Connectivity

Power:
1x AC Power

USB:
1x Mini USB-B

HDMI:
2x HDMI 1.4a

Audio Input:
1x Audio-In (3.5mm)

Audio Output:
1x Audio-Out (3.5mm)

Audio In (RCA Pair):
1x Audio-In (RCA pair)

Computer-In:
1x D-Sub VGA-In

Computer-Out:
1x D-Sub VGA-Out

Microphone:
1x Microphone (3.5mm)

Composite Video:
1x Composite Video RCA

Powered USB:
1x USB-A(5V/1.8A output)

RS232 port:
1x RS232 (9-pin D-Sub)

RJ45 port:
1x RJ45


Dimensions & Weight

Dimensions (excluding feet):
(WxDxH)mm: 383mm x 318mm x 103mm
(WxDxH) inches: 15.08″ x 12.52″ x 4.06″

Weight:
4.7kg (10.36 lbs)


Power

Power Supply:
Universal AC 100-240 V 50-60 Hz with PFC

Power Consumption:
Normal Mode: 320W ± 10% @ 110Vac
Eco-Mode: 270W ± 10% @ 110Vac
Standby Mode: ≤0.5W


Networking:
Yes (LAN / Crestron)


Projector Security:
Kensington lock slot
Password protection


Quick Shutdown:
Yes


Customizable Startup Display:
Yes




Closed Captioning (for NTSC only):
Yes

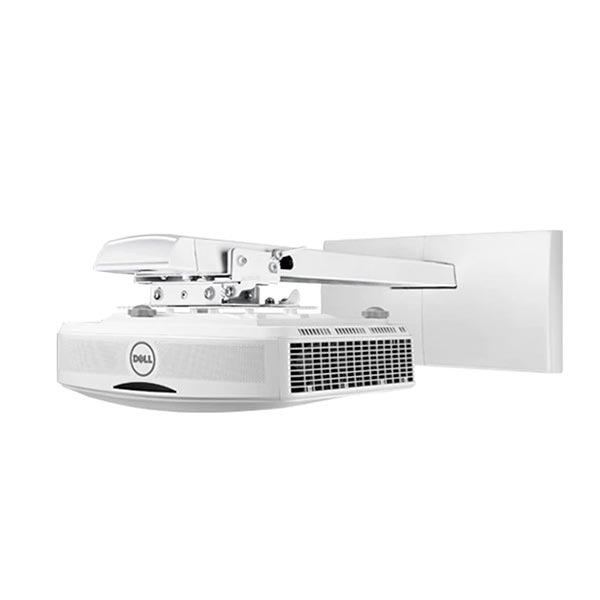

Mounting Options:
Front / Rear / Ceiling / Wall / Tabletop


Noise:
Typical (Normal Mode): 34 dB(A)
Typical (Eco Mode): 29 dB(A)Security


Tilt:
Front tilt adjustment wheel (-5°~ 5°)
